| Place of Origin: | SUZHOU |
|---|---|
| Brand Name: | PHOENIX |
| Certification: | CE LM80 ROHS |
| Model Number: | 3030 |
| Minimum Order Quantity: | 4000PCS |
| Price: | Negotiation |
| Packaging Details: | 4000PCS /ROLL |
| Delivery Time: | 7-10 DAYS |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 800KK PER MONTH |
| Name: | SMD LED 3030 White Color | Nput Voltage(V): | 36V |
|---|---|---|---|
| Cct: | 2700K 3000K 6000K | Power: | 1W |
| Luminous Flux(lm): | 170-180lm | Warranty(Year): | 2 Years |
| Working Time (hours): | 20000 | Color Rendering Index(Ra): | 80 |
| Operating Temperature(℃): | -40-85 | Application: | Gym Light |
| High Light: | 36v led chip rgb,3030 led chip rgb,3030 multi chip led |
||
Application introduction:
From high schools and colleges to public and private athletic centers, proper gym lighting is a must. For too long, gyms and other sports centers have relied on old, outdated technology to illuminate their areas.
Similarly, because gymnasiums and indoor sports centers tend to have high ceilings, proper illumination can be challenging. You want the area to be bright enough to light up any activity, but you also don’t want to add unnecessary glare or add to a room’s ambient temperature.
LED lights offer consistent, natural lighting with high lumens that can reach every corner of a room with even, steady illumination. And because LEDs don’t give off much heat while operating, they don’t contribute to the gym’s overall temperature, thus bringing air conditioning costs down.
High lumen 36V 30MA 180lm 3030 PPT SMD LED CHIP USED FOR GYM LAMP AND SPORTS LAMP
Quick details:
| Input Voltage(V): | 36V |
| Warranty(Year): | 2-Year |
| Type: | Smd Led Chip 3030 |
| Lighting solutions service: | Lighting and circuitry design |
| Luminous Efficacy(lm/w): | 180lm |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 20000 |
| Chip Material: | INGAN |
| Emitting Color: | Warm White/Natural White/COOL WHITE |
| Power: | 1W |
| Viewing Angle(°): | 120 Degree |
| Color Rendering Index(Ra): | 80 |
| Color Temperature: | 2700-6500K |
| Place of Origin: | Suzhou ,jiangsu |
| Application: | Gym light |
| Package Type: | Suface Mount Package |
| Forward Current: | 30MA |
| Size: | 3.0*3.0*0.7mm |
| Packing: | 4000 Pcs/Roll |
Product specification:

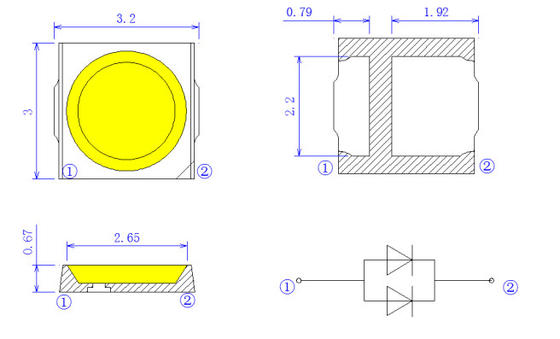

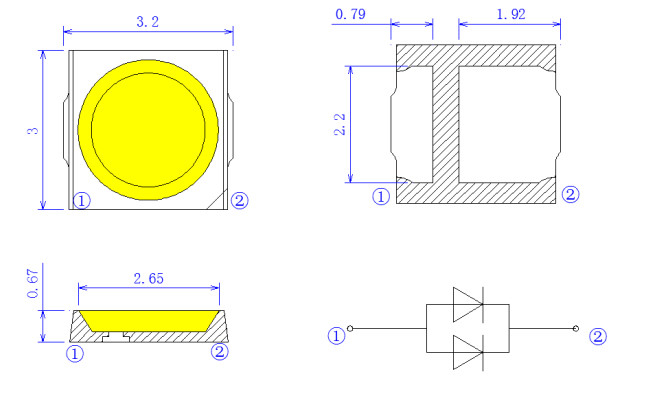

Package Structure:
Absolute Maximum Ratings:
| Item | Symbol | Absolute Maximum Ratings | Unit |
| Forward Current | IF | 30 | mA |
| Reverse Voltage | Vr | 5 | V |
| Pulsed Forward Current | IFP* | 30 | mA |
| Power dissipation | PD | 0.5 | W |
| Operating Temperature | TOP | -40~85 | ℃ |
| Storage Temperature | TST | -40~85 | ℃ |
| Electrostatic Discharge | ESD | 2000(HBM) | V |
| Junction Temperature | Tj | 120 | ℃ |
| LED Thermal resistance | Rth s-j | 33 | ℃/W |
LED Reliability Test List:
| Test Item | Test Conditions | Standard | Qty(Pcs) | Ac/Re |
| Life Test | 25℃,1000Hrs@30mA | / | 20 | 0/1 |
| High Temperature | 85℃,1000Hrs@30mA | / | 20 | 0/1 |
| Low Temperature | -40℃,1000Hrs@30mA | / | 20 | 0/1 |
| High Humidity Heat |
85℃,85%RH, 1000Hrs@30mA |
/ | 20 | 0/1 |
| Low Temperature Storage | -40℃,1000Hrs |
JEITA ED-4701 200 202 |
20 | 0/1 |
| High Temperature Storage | 100℃,1000Hrs |
JEITA ED-4701 200 201 |
20 | 0/1 |
| Temperature Cycle | (-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min) |
JEITA ED-4701 100 105 |
20 | 0/1 |
| Thermal Shock | -40'C(15mins) --100'C(15mins),changing time <5mins ,300C | MIL-STD-202G | 20 | 0/1 |
|
Pulse Life Test
|
Tp=1ms,DC=0.1,D=Tp/T @ 3×30mA | / | 20 | 0/1 |
| ESD Test(HBM) | 2000V,200V/Step, Forward & Reverse Test both 3times |
AEC (Q101-001) |
20 | 0/1 |
| Soldering Resistance |
260±5℃,10S,3times Pre-treatment 30℃,70%RH |
JEITA ED-4701 300 302 |
20 | 0/1 |
| Reflow IV Decay |
260±5℃,10S,1time Pre-treatment 30℃,70%RH,168Hrs |
/ | 20 | 0/1 |
| Judgment Criteria | ||||
| Forward Voltage VF | VF Max-Increase < 1.1x | |||
| Reverse Current IR | IR Max-Increase < IRmax | |||
| Luminous Intensity IV | IV Decay < 40% | |||
|
※Solder ability test criteria:coverage is not less than 95% Note:Measurement shall be taken after the tested samples have been returned to normal ambient conditions (generally after two hours) |
||||
Packaging:
Cautions:
The encapsulated material of the LEDs is silicone. Therefore the LEDs have a soft surface on the
Top of package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions Should be taken to avoid the strong pressure on the encapsulated part. So when use the picking up nozzle,The pressure on the silicone resin should be proper.
Soldering iron :
When hand soldering, the temperature of the iron must less than 300℃ for 3 seconds
The hand solder should be done only one times
SMT Reflow Soldering Instructions SMT :
Reflow soldering should not be done more than two times
When soldering , do not put stress on the LEDs during heating
The recommended reflow soldering profile as following
Product process :
