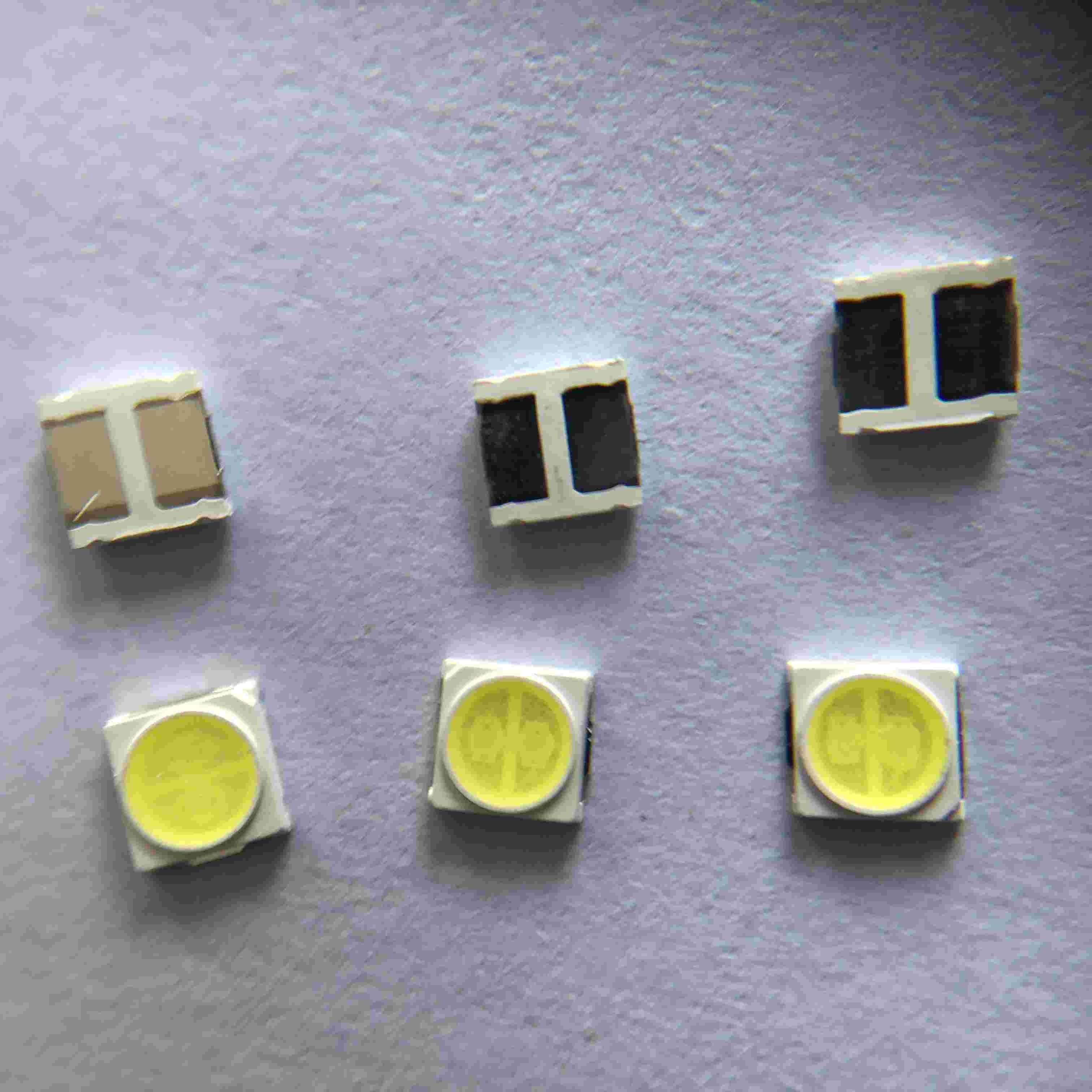

3030 EMC 3V 6V 5700k Rgb Led Chip Base SMD

Basic Information
Place of Origin: SUZHOU
Brand Name: PHOENIX
Certification: LM80 CE ROHS
Model Number: 3030
Minimum Order Quantity: 4000PCS
Price: Negotiation
Packaging Details: 4000PCS /ROLL
Delivery Time: 7-10 DAYS
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 800KK PER MONTH
Name: SMD LED 3030 White Color Application: Street Light
Nput Voltage(V): 3V/ 6V Luminous Flux(lm): 170-180lm
Color Rendering Index(Ra): 80 Cct: 6500K 5700K
Power: 1w Warranty(Year): 2 Years
Working Time (hours): 20000 Operating Temperature(℃): -40-85
High Light:

3030 led chip base

,

5700k led chip base

,

3030 rgb chip

Application Introduction:



Industrial and mining lamp lighting is closely related to industrial production. Led industrial and mining lamps have gradually come into people's vision with the advantages of directional lighting, low power consumption, good driving characteristics, fast response speed, high seismic capacity, long service life and green environmental protection.





SMD LED Chip 3030 EMC 3V 6V Ultra Bright 170-180lm for high-end lighting application


Quick details:



Input Voltage(V): 3V/6V
Warranty(Year): 2-Year
Type: Smd Led Chip 3030
Lighting solutions service: Lighting and circuitry design
Luminous Efficacy(lm/w): 180LM
Lifespan (hours): 50000
Working Time (hours): 20000
Chip Material: INGAN
Emitting Color: Warm White/Natural White/COOL WHITE
Power: 1W
Viewing Angle(°): 120 Degree
Color Rendering Index(Ra): 80
Color Temperature: 5700K  6500K
Place of Origin: Suzhou ,jiangsu
Application: street light
Package Type: Suface Mount Package
Forward Current: 300MA /150MA
Size: 3.0*3.0*0.6mm
Packing: 4000 Pcs/Roll



Product specification:

Package Structure:

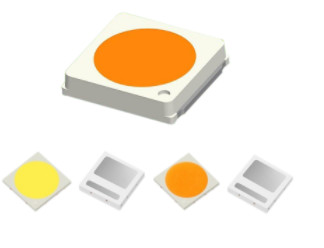

3030 EMC 3V 6V 5700k Rgb Led Chip Base SMD 0

Absolute Maximum Ratings:



Item Symbol Absolute Maximum Ratings Unit
Forward Current IF 500 mA
Reverse Voltage Vr 5 V
Pulsed Forward Current IFP* 600 mA
Power dissipation PD 1.5 W
Operating Temperature TOP -40~85
Storage Temperature TST -40~85
Electrostatic Discharge ESD 2000(HBM) V
Junction Temperature Tj 120
LED Thermal resistance Rth s-j 30 ℃/W

Bin Structure:

3030 EMC 3V 6V 5700k Rgb Led Chip Base SMD 1

Typical Electro-Optical characteristics curves:

3030 EMC 3V 6V 5700k Rgb Led Chip Base SMD 2

Packaging:

3030 EMC 3V 6V 5700k Rgb Led Chip Base SMD 3

Cautions:
The encapsulated material of the LEDs is silicone. Therefore the LEDs have a soft surface on the
Top of package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions Should be taken to avoid the strong pressure on the encapsulated part. So when use the picking up nozzle,The pressure on the silicone resin should be proper.

Soldering iron :
When hand soldering, the temperature of the iron must less than 300℃ for 3 seconds
The hand solder should be done only one times

SMT Reflow Soldering Instructions SMT :
Reflow soldering should not be done more than two times
When soldering , do not put stress on the LEDs during heating
The recommended reflow soldering profile as following



3030 EMC 3V 6V 5700k Rgb Led Chip Base SMD 4

Product features:



Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation

High brightness ,low attenuation high color rendering

Minimum 70,80,90 95 CRI options

Strong welding and good stability undead light

Product series and company logo on the front

CE ROHS LM80 Certification



Production Process:



3030 EMC 3V 6V 5700k Rgb Led Chip Base SMD 5
