| Place of Origin: | SUZHOU |
|---|---|
| Brand Name: | PHOENIX |
| Certification: | LM80 CE ROHS |
| Model Number: | 2835 |
| Minimum Order Quantity: | 4000PCS |
| Price: | Negotiation |
| Packaging Details: | 4000PCS /ROLL |
| Delivery Time: | 7-10 DAYS |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 800KK PER MONTH |
| Name: | SMD LED 2835 White Color | Nput Voltage(V): | 18v |
|---|---|---|---|
| Power: | 30MA | Luminous Flux(lm): | 75-85lm |
| Application: | Bulb Lamp | CCT: | 3000k 4000k 6500k |
| Warranty(Year): | 2 Years | Working Time (hours): | 20000 |
| Operating Temperature(℃): | -40-85 | Viewing Angle(°):: | 120 |
| High Light: | 18v 2835 Smd Led Chip,Energy Saving 2835 Smd Led Chip,Energy Saving 2835 Led Chip |
||

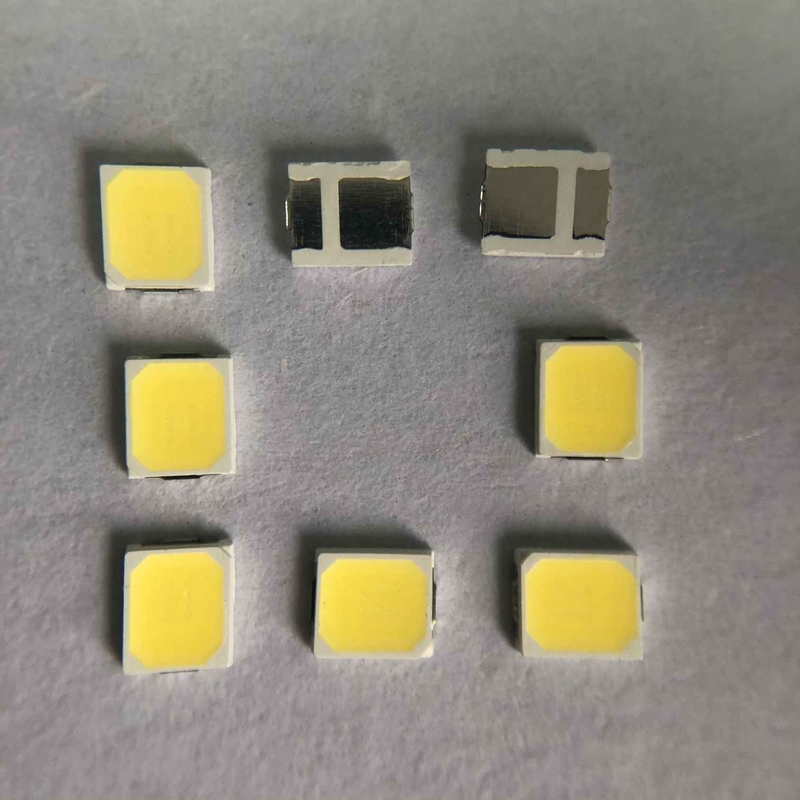

Energy Saving 18v 30ma 2835 Smd Led Chip For Bulb Lamp
Energy Saving 18v 30ma SMD 2835 LED Chip For Bulb Lamp
The positive side of the LED is the Anode and the negative side is the Cathode. Current flows from the anode to the cathode and never in the other direction, so it is important to know how to tell the anode and cathode apart
Quick details:
| Input Voltage(V): | 18V |
| Warranty(Year): | 2-Year |
| Type: | Smd Led Chip 2835 |
| Lighting solutions service: | Lighting and circuitry design |
| Luminous Efficacy(lm/w): | 160lm/w |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 20000 |
| Chip Material: | INGAN |
| Emitting Color: | 3000K 4000K 6500K |
| Power: | 0.5W |
| Viewing Angle(°): | 120 Degree |
| Color Rendering Index(Ra): | 80 |
| Packing bag: | 220*240nm |
| Place of Origin: | Suzhou ,jiangsu |
| Application: | LED STRIP |
| Package Type: | Suface Mount Package |
| Forward Current: | 30MA |
| Size: | 2.8*3.5*0.65mm |
| Packing: | 4000 Pcs/Roll |
Product specification:
Package Structure
Absolute Maximum Ratings
| Power dissipation | PD | 0.5 | W |
| Continuous forward current | IFmax | 30 | mA |
| Peak forward current (1/10 duty cycle 10ms pulse width) | IFP | 40 | mA |
| Item | Symbol | Maximum | Unit |
| Reverse voltage | VR | 5 | V |
| Electrostatic Discharge (HBM) | ESD | 2000 | V |
| Operating temperature range | Topr | -40 to +85 | ℃ |
| Storage temperature range | Tstg | -40 to +85 | ℃ |
| Led yunction temperature | Tj | 120 | ℃ |
Optical/Electrical Characterization:
| CCT | STEPS | x | y | a | b | θ |
| ERP F6500 | 1 | 0.313 | 0.337 | 0.00223 | 0.00095 | 58.383 |
| ERP F5000 | 1 | 0.346 | 0.359 | 0.00274 | 0.00118 | 59.617 |
| ERP F4000 | 1 | 0.38 | 0.38 | 0.00313 | 0.00134 | 54 |
| ERP F3000 | 1 | 0.44 | 0.403 | 0.00278 | 0.00136 | 53.167 |
| ERP P2700 | 1 | 0.463 | 0.42 | 0.00258 | 0.00137 | 57.283 |
| CCT | STEPS | CX | CY | a | b | theta |
| 2700K | 1 | 0.4578 | 0.4101 | 0.0027 | 0.0014 | 53.7 |
| 3000K | 1 | 0.4338 | 0.403 | 0.00278 | 0.00136 | 53.22 |
| 3500K | 1 | 0.4073 | 0.3917 | 0.00309 | 0.00138 | 54 |
| 4000K | 1 | 0.3818 | 0.3797 | 0.00313 | 0.00134 | 53.72 |
| 5000K | 1 | 0.3447 | 0.3553 | 0.00274 | 0.00118 | 59.62 |
| 5700K | 1 | 0.3287 | 0.3417 | 0.00249 | 0.00107 | 59.09 |
| 6500K | 1 | 0.3123 | 0.3282 | 0.00223 | 0.00095 | 58.57 |
Typical Electro-Optical characteristics curves:
Product features:
Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation
High brightness ,low attenuation high color rendering
Minimum 70,80,90 95 CRI options
Strong welding and good stability undead light
Product series and company logo on the front
CE ROHS LM80 Certification
Production Process:
