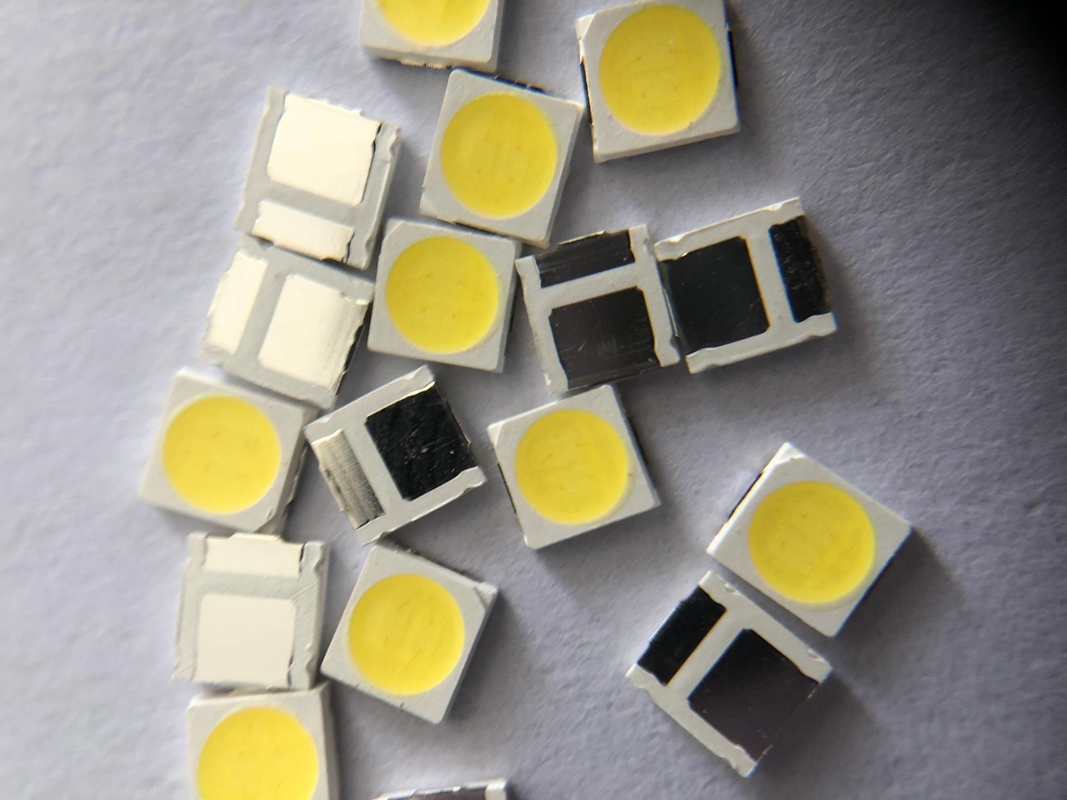

3030 EMC FRAME Smd 3v 170 - 180lm Led 300ma Chip White Color For ROAD LAMP

Basic Information
Place of Origin: SUZHOU
Brand Name: PHOENIX
Certification: LM80 CE ROHS
Model Number: 3030
Minimum Order Quantity: 4000PCS
Price: Negotiation
Packaging Details: 4000PCS /ROLL
Delivery Time: 7-10 DAYS
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 800KK PER MONTH
Name: SMD LED 3030 White Color Application: Street Light
Luminous Flux(lm): 170-180lm Power: 1w
Cct: 3000K 4000K 6500K Nput Voltage(V): 3V
Color Rendering Index(Ra): 80 Warranty(Year): 2 Years
Working Time (hours): 20000 Operating Temperature(℃): -40-85
High Light:

170lm SMD LED 3030

,

180lm SMD LED 3030

,

ROAD LAMP SMD LED 3030

3030 EMC FRAME Smd 3v 170-180lm Led 300ma Chip White Color For ROAD LAMP



Application Introduction:



Street lamps involve lighting technology and are applicable to street lamps. The purpose is to design an efficient electronic energy-saving street lamp with long life, low power consumption, high power factor and small current harmonic content. The high-efficient electronic energy-saving street lamp comprises a grid high-voltage discharge branch R1, C1, a rectifier bridge D1-D4, a power factor correction branch C2, D5, D6, a high and intermediate frequency burr filtering branch L1, L3, a high-frequency oscillation circuit BG1-BG2, a starting branch L2, C7, and a lamp tube T connected in sequence; It can save 80% electricity compared with the previous street lamps; The harmonic content THD is less than 25%, and the lamp life can be extended by 3-4 times.



3030 SMD efficiency option 3V 300MA 170-180lm white color PPT SMD LED CHIP for street light



Quick details:



Input Voltage(V): 3V
Warranty(Year): 2-Year
Type: Smd Led Chip 3030
Lighting solutions service: Lighting and circuitry design
Luminous Efficacy(lm/w): 170-180LM
Lifespan (hours): 50000
Working Time (hours): 20000
Chip Material: INGAN
Emitting Color: Warm White/Natural White/COOL WHITE
Power: 1W
Viewing Angle(°): 120 Degree
Color Rendering Index(Ra): 80
Color Temperature: 2700-6500K
Place of Origin: Suzhou ,jiangsu
Application: street light
Package Type: Suface Mount Package
Forward Current: 300MA
Size: 3.0*3.0*0.6mm
Packing: 4000 Pcs/Roll



Product specification:

Package Structure:

3030 EMC FRAME Smd 3v 170 - 180lm Led 300ma Chip White Color For ROAD LAMP 0

Product Specification:

Item Specification Material Quantity
Chip InGaN InGaN 2 in 1
Reflector White PCT
Frame C194 Silver-Plated Copper
Gold wire 0.9mil Alloy
Phosphor white white
Encapsulant MilkyWhite Resin
Carrier tape According to EIA 481-1A specs Conductive black tape 4000pcs per reel
Reel According to EIA 481-1A specs Conductive black 4000pcs per reel
Label Repsn standard Paper
Packing bag 220x240mm Aluminum laminated bag/ no-zipper One reel one bag
Carton Repsn standard Paper Non-specified



Typical Electro-Optical characteristics curves:

3030 EMC FRAME Smd 3v 170 - 180lm Led 300ma Chip White Color For ROAD LAMP 1

LED Reliability Test List:



Test Item Test Conditions Standard Qty(Pcs) Ac/Re
Life Test 25℃,1000Hrs@300mA / 20 0/1
High Temperature 85℃,1000Hrs@300mA / 20 0/1
Low Temperature -40℃,1000Hrs@300mA / 20 0/1
High Humidity Heat

85℃,85%RH,

1000Hrs@300mA

/ 20 0/1
Low Temperature Storage -40℃,1000Hrs

JEITA ED-4701

200 202

20 0/1
High Temperature Storage 100℃,1000Hrs

JEITA ED-4701

200 201

20 0/1
Temperature Cycle (-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min)

JEITA ED-4701

100 105

20 0/1
Thermal Shock -40'C(15mins) --100'C(15mins),changing time <5mins ,100C MIL-STD-202G 20 0/1

Pulse Life Test



Tp=1ms,DC=0.1,D=Tp/T @ 3×300mA / 20 0/1
ESD Test(HBM) 2000V,200V/Step, Forward & Reverse Test both 3times

AEC

(Q101-001)

20 0/1
Soldering Resistance

260±5℃,10S,3times

Pre-treatment 30℃,70%RH

JEITA ED-4701

300 302

20 0/1
Reflow IV Decay

260±5℃,10S,1time

Pre-treatment 30℃,70%RH,168Hrs

/ 20 0/1
Judgment Criteria
Forward Voltage VF VF Max-Increase < 1.1x
Reverse Current IR IR Max-Increase < IRmax
Luminous Intensity IV IV Decay < 40%

※Solder ability test criteria:coverage is not less than 95%

Note:Measurement shall be taken after the tested samples have been returned to normal ambient conditions (generally after two hours)



Packaging:

3030 EMC FRAME Smd 3v 170 - 180lm Led 300ma Chip White Color For ROAD LAMP 2

Cautions:
The encapsulated material of the LEDs is silicone. Therefore the LEDs have a soft surface on the
Top of package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions Should be taken to avoid the strong pressure on the encapsulated part. So when use the picking up nozzle,The pressure on the silicone resin should be proper.

Soldering iron :
When hand soldering, the temperature of the iron must less than 300℃ for 3 seconds
The hand solder should be done only one times

SMT Reflow Soldering Instructions SMT :
Reflow soldering should not be done more than two times
When soldering , do not put stress on the LEDs during heating
The recommended reflow soldering profile as following



3030 EMC FRAME Smd 3v 170 - 180lm Led 300ma Chip White Color For ROAD LAMP 3



Product features:



Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation

High brightness ,low attenuation high color rendering

Minimum 70,80,90 95 CRI options

Strong welding and good stability undead light

Product series and company logo on the front

CE ROHS LM80 Certification
