| Place of Origin: | SUZHOU |
|---|---|
| Brand Name: | PHOENIX |
| Certification: | LM80 CE ROHS |
| Model Number: | 3030 |
| Minimum Order Quantity: | 4000PCS |
| Price: | Negotiation |
| Packaging Details: | 4000PCS /ROLL |
| Delivery Time: | 7-10 DAYS |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 800KK PER MONTH |
| Name: | SMD LED 3030 White Color | Nput Voltage(V): | 6V |
|---|---|---|---|
| Luminous Flux(lm): | 155-165lm | Application: | Street Light |
| Color Rendering Index(Ra): | 80 | Cct: | 6500K |
| Power: | 1w | Warranty(Year): | 2 Years |
| Working Time (hours): | 20000 | Operating Temperature(℃): | -40-85 |
| High Light: | 3030 rgbw led chip,SMD rgbw led chip,3030 chip led rgb |
||
Application Introduction:
High efficiency stadium ceiling lamps, also known as high-efficiency energy-saving ceiling lamps, can also be referred to as high-efficiency ceiling lamps. High efficiency venues or venue lamps are suitable for all kinds of large indoor stadiums, exhibition halls, factories, freight yards, warehouses, electric power, petrochemical, metallurgy and other indoor and outdoor lighting.

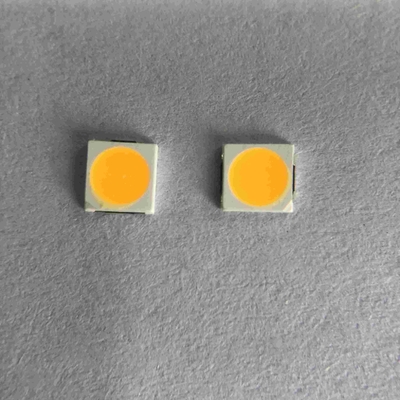

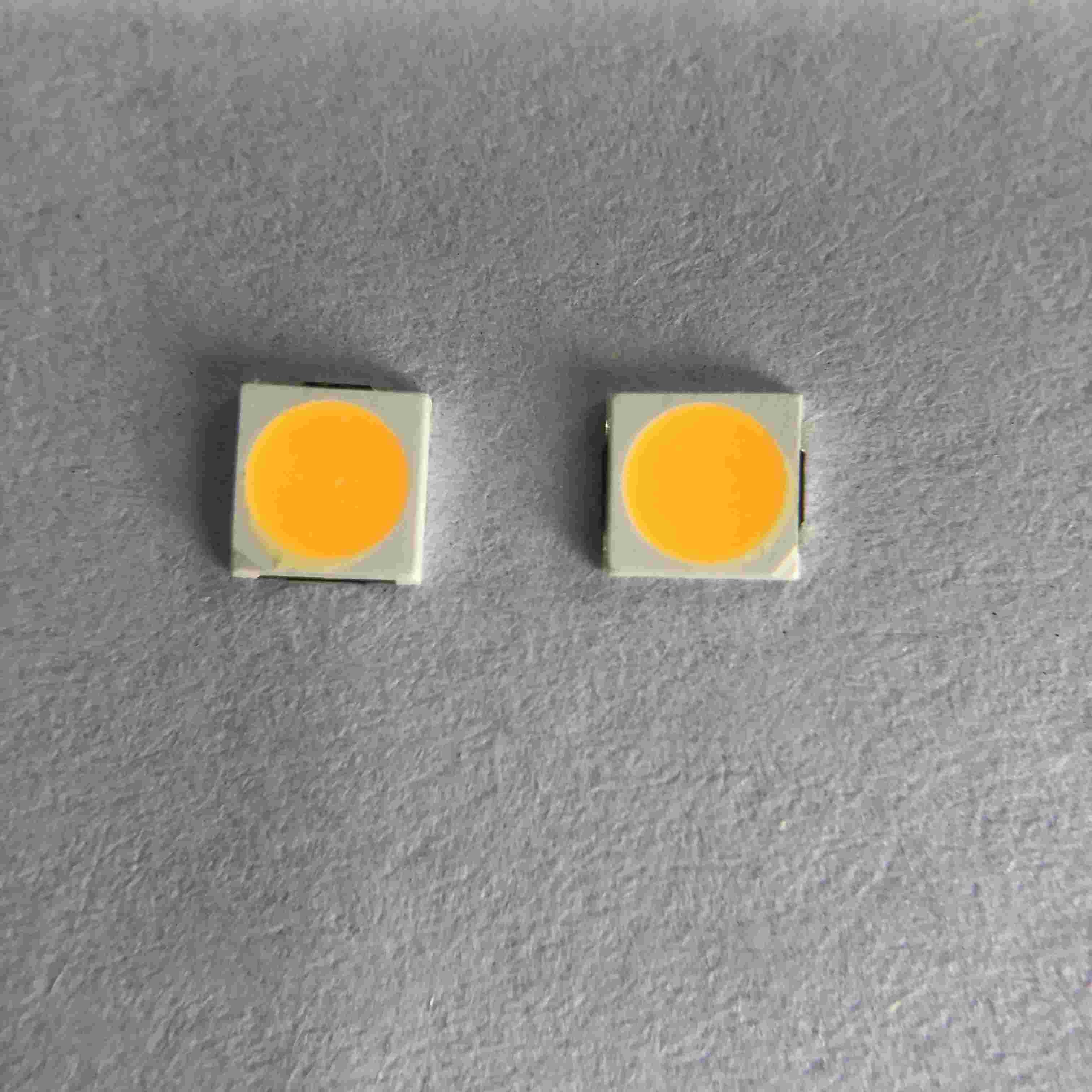

3030 High lumen 6V 150MA LED CHIP for street light mining light tunnel light flood light
Quick details:
| Input Voltage(V): | 6V |
| Warranty(Year): | 2-Year |
| Type: | Smd Led Chip 3030 |
| Lighting solutions service: | Lighting and circuitry design |
| Luminous Efficacy(lm/w): | 155-165LM |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 20000 |
| Chip Material: | INGAN |
| Emitting Color: | Warm White/Natural White/COOL WHITE |
| Power: | 1W |
| Viewing Angle(°): | 120 Degree |
| Color Rendering Index(Ra): | 80 |
| Color Temperature: | 2700-6500K |
| Place of Origin: | Suzhou ,jiangsu |
| Application: | street light |
| Package Type: | Suface Mount Package |
| Forward Current: | 150MA |
| Size: | 3.0*3.0*0.6mm |
| Packing: | 4000 Pcs/Roll |
Product specification:
Package Structure:
Absolute Maximum Ratings:
| Item | Symbol | Absolute Maximum Ratings | Unit |
| Forward Current | IF | 150 | mA |
| Reverse Voltage | Vr | 5 | V |
| Pulsed Forward Current | IFP* | 180 | mA |
| Power dissipation | PD | 1.0 | W |
| Operating Temperature | TOP | -40~85 | ℃ |
| Storage Temperature | TST | -40~85 | ℃ |
| Electrostatic Discharge | ESD | 2000(HBM) | V |
| Junction Temperature | Tj | 120 | ℃ |
| LED Thermal resistance | Rth s-j | 33 | ℃/W |
Typical Electro-Optical characteristics curves:
LED Reliability Test List:
| Test Item | Test Conditions | Standard | Qty(Pcs) | Ac/Re |
| Life Test | 25℃,1000Hrs@150mA | / | 20 | 0/1 |
| High Temperature | 85℃,1000Hrs@150mA | / | 20 | 0/1 |
| Low Temperature | -40℃,1000Hrs@150mA | / | 20 | 0/1 |
| High Humidity Heat |
85℃,85%RH, 1000Hrs@150mA |
/ | 20 | 0/1 |
| Low Temperature Storage | -40℃,1000Hrs |
JEITA ED-4701 200 202 |
20 | 0/1 |
| High Temperature Storage | 100℃,1000Hrs |
JEITA ED-4701 200 201 |
20 | 0/1 |
| Temperature Cycle | (-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min) |
JEITA ED-4701 100 105 |
20 | 0/1 |
| Thermal Shock | -40'C(15mins) --100'C(15mins),changing time <5mins ,100C | MIL-STD-202G | 20 | 0/1 |
|
Pulse Life Test
|
Tp=1ms,DC=0.1,D=Tp/T @ 3×150mA | / | 20 | 0/1 |
| ESD Test(HBM) | 2000V,200V/Step, Forward & Reverse Test both 3times |
AEC (Q101-001) |
20 | 0/1 |
| Soldering Resistance |
260±5℃,10S,3times Pre-treatment 30℃,70%RH |
JEITA ED-4701 300 302 |
20 | 0/1 |
| Reflow IV Decay |
260±5℃,10S,1time Pre-treatment 30℃,70%RH,168Hrs |
/ | 20 | 0/1 |
| Judgment Criteria | ||||
| Forward Voltage VF | VF Max-Increase < 1.1x | |||
| Reverse Current IR | IR Max-Increase < IRmax | |||
| Luminous Intensity IV | IV Decay < 40% | |||
|
※Solder ability test criteria:coverage is not less than 95% Note:Measurement shall be taken after the tested samples have been returned to normal ambient conditions (generally after two hours) |
||||
Packaging:
Cautions:
The encapsulated material of the LEDs is silicone. Therefore the LEDs have a soft surface on the
Top of package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions Should be taken to avoid the strong pressure on the encapsulated part. So when use the picking up nozzle,The pressure on the silicone resin should be proper.
Soldering iron :
When hand soldering, the temperature of the iron must less than 300℃ for 3 seconds
The hand solder should be done only one times
SMT Reflow Soldering Instructions SMT :
Reflow soldering should not be done more than two times
When soldering , do not put stress on the LEDs during heating
The recommended reflow soldering profile as following
Product features:
Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation
High brightness ,low attenuation high color rendering
Minimum 70,80,90 95 CRI options
Strong welding and good stability undead light
Product series and company logo on the front
CE ROHS LM80 Certification
Production Process:
