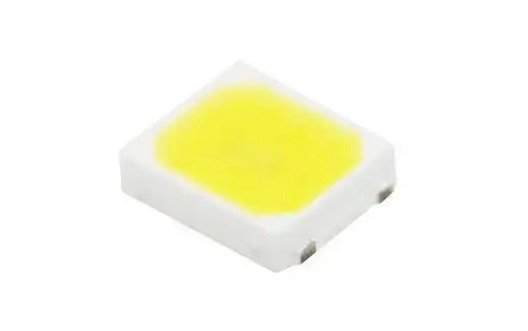

High Lumen 3v 60ma 0.2w 2835 26-28lm 6500k Smd Led Chip Strip Home Decoration

Basic Information
Place of Origin: SUZHOU
Brand Name: PHOENIX
Certification: LM80 CE ROHS
Model Number: 2835
Minimum Order Quantity: 4000PCS
Price: Negotiation
Packaging Details: 4000PCS /ROLL
Delivery Time: 7-10 DAYS
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 800KK PER MONTH
Name: SMD LED 2835 Nput Voltage(V): 3V
Application: Home Decoration Power: 60MA
Luminous Flux(lm): 26-28lm CCT: 2700K 3000K 4000K 6500k
Warranty(Year): 2 Years Working Time (hours): 20000
Operating Temperature(℃): -40-85 Viewing Angle(°):: 120
High Light:

0.2w SMD LED Chip

,

28lm SMD LED Chip

,

6500k high lumen led chip

Application Introduction:



Light strip is another name of light strip. It is a lighting product of LED series. It is characterized by cold light source, low heating, high efficiency and power saving.



High lumen 3V 60MA 0.2W 2835 26-28LM 6500K PCT SMD LED CHIP STRIP HOME DECORATION​



Quick details:



Input Voltage(V): 3V
Warranty(Year): 2-Year
Type: Smd Led Chip 2835
Lighting solutions service: Lighting and circuitry design
Luminous Efficacy(lm/w): 150lm/w
Lifespan (hours): 50000
Working Time (hours): 20000
Chip Material: INGAN
Emitting Color: 2700-6500K
Power: 0.2W
Viewing Angle(°): 120 Degree
Color Rendering Index(Ra): 80
Packing bag: 220*240nm
Place of Origin: Suzhou ,jiangsu
Application: LED STRIP
Package Type: Suface Mount Package
Forward Current: 60MA
Size: 2.8*3.5*0.65mm
Packing: 4000 Pcs/Roll


Product specification:



Package Structure

High Lumen 3v 60ma 0.2w 2835 26-28lm 6500k Smd Led Chip Strip Home Decoration 0

Absolute Maximum Ratings



Item Symbol Absolute Maximum Ratings Unit
Forward Current IF 60 mA
Reverse Voltage Vr 5 V
Pulsed Forward Current IFP* 80 mA
Power dissipation PD 0.2 W
Operating Temperature TOP -40~85
Storage Temperature TST -40~85
Electrostatic Discharge ESD 2000(HBM) V
Junction Temperature Tj 120
LED Thermal resistance Rth s-j 30 ℃/W



Typical Electro-Optical characteristics curves:



High Lumen 3v 60ma 0.2w 2835 26-28lm 6500k Smd Led Chip Strip Home Decoration 1

LED Reliability Test List



Test Item

Test Conditions

Standard

Qty(Pcs)

Ac/Re

Life Test

25,1000Hrs@60mA

/

20

0/1

High Temperature

85,1000Hrs@60mA

/

20

0/1

Low Temperature

-40,1000Hrs@60mA

/

20

0/1

High Humidity Heat

85,85%RH,

1000Hrs@60mA

/

20

0/1

Low Temperature Storage

-40,1000Hrs

JEITA ED-4701

200 202

20

0/1

High Temperature Storage

100,1000Hrs

JEITA ED-4701

200 201

20

0/1

Temperature Cycle

(-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min)

JEITA ED-4701

 100 105

20

0/1

Thermal Shock

-40'C(15mins) --100'C(15mins),changing time <5mins ,300C

MIL-STD-202G

20

0/1

Pulse Life Test



Tp=1ms,DC=0.1,D=Tp/T @ 3×150mA

/

20

0/1

ESD Test(HBM)

2000V,200V/Step, Forward & Reverse Test both 3times

AEC

(Q101-001)

20

0/1

Soldering Resistance

260±5,10S,3times

Pre-treatment 30,70%RH

JEITA ED-4701

300 302

20

0/1

Reflow IV Decay

260±5,10S,1time

Pre-treatment 30,70%RH,168Hrs

/

20

0/1




Packaging:

High Lumen 3v 60ma 0.2w 2835 26-28lm 6500k Smd Led Chip Strip Home Decoration 2

 Cautions:

The encapsulated material of the LEDs is silicone. Therefore the LEDs have a soft surface on the

Top of package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions Should be taken to avoid the strong pressure on the encapsulated part. So when use the picking up nozzle,The pressure on the silicone resin should be proper.

Soldering iron :
 When hand soldering, the temperature of the iron must less than 300℃ for 3 seconds
 The hand solder should be done only one times


SMT Reflow Soldering Instructions SMT :
Reflow soldering should not be done more than two times
When soldering , do not put stress on the LEDs during heating
The recommended reflow soldering profile as following

High Lumen 3v 60ma 0.2w 2835 26-28lm 6500k Smd Led Chip Strip Home Decoration 3

Handling Precautions :
Handle the component along the side surface by using forceps or appropriate tools
Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry
Do not stack together assembled PCBs containing LEDs. Impact may scratch the silicone lens or damage the internal circuitry



High Lumen 3v 60ma 0.2w 2835 26-28lm 6500k Smd Led Chip Strip Home Decoration 4High Lumen 3v 60ma 0.2w 2835 26-28lm 6500k Smd Led Chip Strip Home Decoration 5High Lumen 3v 60ma 0.2w 2835 26-28lm 6500k Smd Led Chip Strip Home Decoration 6High Lumen 3v 60ma 0.2w 2835 26-28lm 6500k Smd Led Chip Strip Home Decoration 7



Product features:



Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation

High brightness ,low attenuation high color rendering

Minimum 70,80,90 95 CRI options

Strong welding and good stability undead light

Product series and company logo on the front

CE ROHS LM80 Certification
