ODM 2V Dimmable Led Chip Code 2835 2700k Red Green Blue

Basic Information
Place of Origin: SUZHOU
Brand Name: PHOENIX
Certification: LM80 CE ROHS
Model Number: 2835
Minimum Order Quantity: 4000PCS
Price: Negotiation
Packaging Details: 4000PCS /ROLL
Delivery Time: 7-10 DAYS
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 800KK PER MONTH

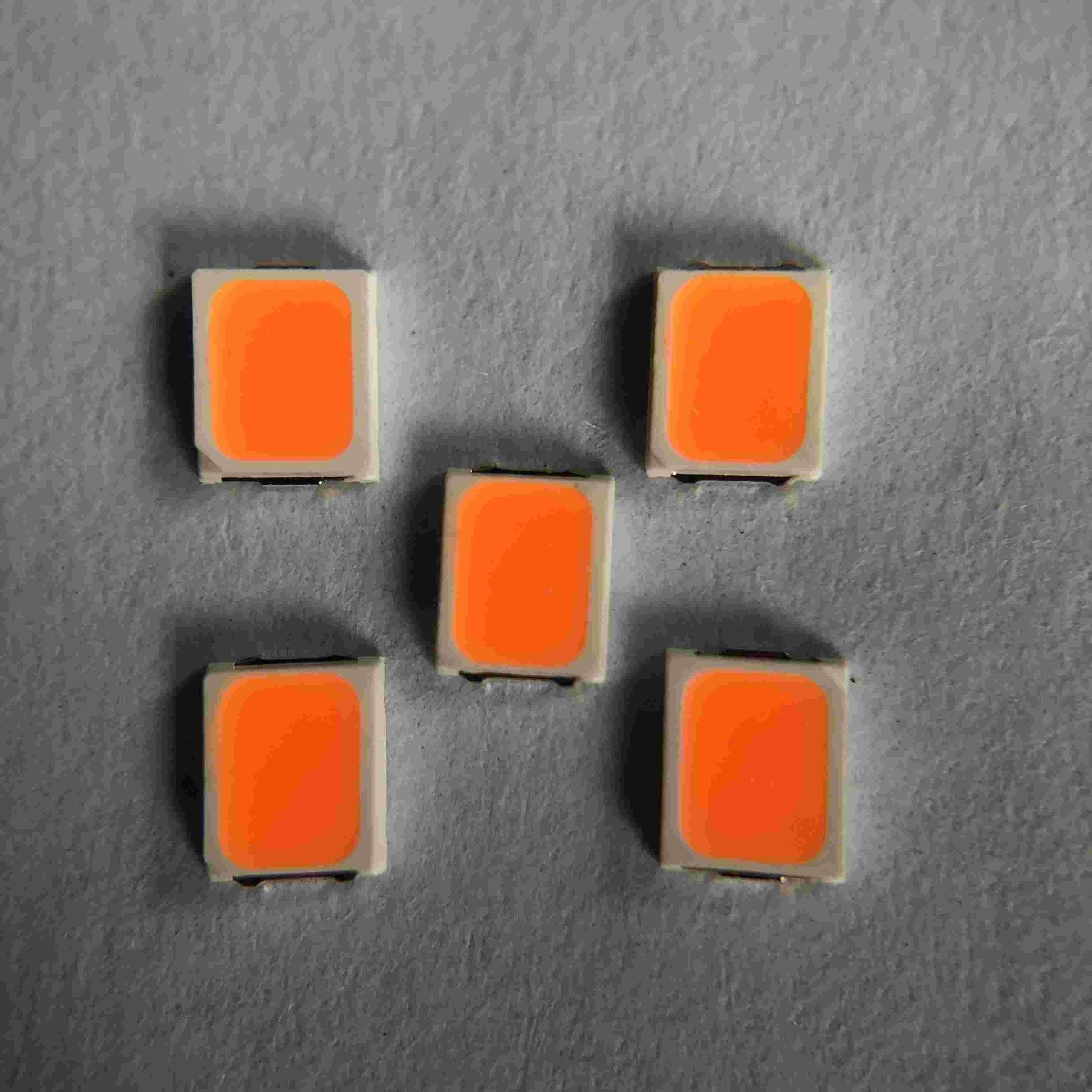

Type: SMD LED CHIP Name: SMD LED 2835 Red Color
Nput Voltage(V): 2.1v-2.4v Luminous Flux(lm): 3-5lm
Application: Logo ,sign ,light Boxes Power: 30ma
Wld(nm): 620-630nm Warranty(Year): 2 Years
Working Time (hours): 20000 Operating Temperature(℃): -40-85
Viewing Angle(°):: 120
High Light:

Red led chip code 2835

,

Dimmable led chip code 2835

,

led 2835 chip 2700k

Application Introduction:



Environmental protection and durability

1. The LED light box adopts ultra-thin design;

2. Using high-quality LED light source, the lamp box is long-term, reliable and durable, long service life and extremely low maintenance cost;

3. Diversified design, flexible flashing mode, more advertising effect;

4. Low voltage DC power supply, power saving, safety, aluminum alloy frame, safety and environmental protection.



2835 red green blue color 2V led chip for commericial light boxes ads lights ,logo,sign


Quick details:



Input Voltage(V): 2.1-2.4V
Warranty(Year): 2-Year
Type: Smd Led Chip 2835
Lighting solutions service: Lighting and circuitry design
Luminous Efficacy(lm/w): 3-5lm
Lifespan (hours): 50000
Working Time (hours): 20000
Chip Material: INGAN
Emitting Color: Red green blue
Power: 0.2W
Viewing Angle(°): 120 Degree
Color Rendering Index(Ra): 80
Packing bag: 220*240nm
Place of Origin: Suzhou ,jiangsu
Application: Household appliances and traffic lights
Package Type: Suface Mount Package
Forward Current: 150MA
Size: 2.8*3.5*0.65mm
Packing: 4000 Pcs/Roll


Product specification:

Package Structure:

ODM 2V Dimmable Led Chip Code 2835 2700k Red Green Blue 0




Absolute Maximum Ratings:



Item Symbol Absolute Maximum Ratings Unit
Forward Current IF 30 mA
Reverse Voltage Vr 5 V
Pulsed Forward Current IFP* 30 mA
Power dissipation PD 0.5 W
Operating Temperature TOP -40~85
Storage Temperature TST -40~85
Electrostatic Discharge ESD 2000(HBM) V
Junction Temperature Tj 120
LED Thermal resistance Rth s-j 33 ℃/W



Typical Electro-Optical characteristics curves:

ODM 2V Dimmable Led Chip Code 2835 2700k Red Green Blue 1

LED Reliability Test List:



Test Item Test Conditions Standard Qty(Pcs) Ac/Re
Life Test 25℃,1000Hrs@30mA / 20 0/1
High Temperature 85℃,1000Hrs@30mA / 20 0/1
Low Temperature -40℃,1000Hrs@30mA / 20 0/1
High Humidity Heat

85℃,85%RH,

1000Hrs@30mA

/ 20 0/1
Low Temperature Storage -40℃,1000Hrs

JEITA ED-4701

200 202

20 0/1
High Temperature Storage 100℃,1000Hrs

JEITA ED-4701

200 201

20 0/1
Temperature Cycle (-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min)

JEITA ED-4701

100 105

20 0/1
Thermal Shock -40'C(15mins) --100'C(15mins),changing time <5mins ,300C MIL-STD-202G 20 0/1

Pulse Life Test



Tp=1ms,DC=0.1,D=Tp/T @ 3×30mA / 20 0/1
ESD Test(HBM) 2000V,200V/Step, Forward & Reverse Test both 3times

AEC

(Q101-001)

20 0/1
Soldering Resistance

260±5℃,10S,3times

Pre-treatment 30℃,70%RH

JEITA ED-4701

300 302

20 0/1
Reflow IV Decay

260±5℃,10S,1time

Pre-treatment 30℃,70%RH,168Hrs

/ 20 0/1
Judgment Criteria
Forward Voltage VF VF Max-Increase < 1.1x
Reverse Current IR IR Max-Increase < IRmax
Luminous Intensity IV IV Decay < 40%

※Solder ability test criteria:coverage is not less than 95%

Note:Measurement shall be taken after the tested samples have been returned to normal ambient conditions (generally after two hours)



Packaging:

ODM 2V Dimmable Led Chip Code 2835 2700k Red Green Blue 2

Cautions:
The encapsulated material of the LEDs is silicone. Therefore the LEDs have a soft surface on the
Top of package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions Should be taken to avoid the strong pressure on the encapsulated part. So when use the picking up nozzle,The pressure on the silicone resin should be proper.

Soldering iron :
When hand soldering, the temperature of the iron must less than 300℃ for 3 seconds
The hand solder should be done only one times

SMT Reflow Soldering Instructions SMT :
Reflow soldering should not be done more than two times
When soldering , do not put stress on the LEDs during heating
The recommended reflow soldering profile as following

ODM 2V Dimmable Led Chip Code 2835 2700k Red Green Blue 3







Product features:



Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation

High brightness ,low attenuation high color rendering

Minimum 70,80,90 95 CRI options

Strong welding and good stability undead light

Product series and company logo on the front

CE ROHS LM80 Certification
